Step 1: Find a Body Chart Image

First, you need an image. You can find an image from google or use our body chart image below. Our body chart image is 1280x1280.

Body Chart Image

Step 2: Create Body Part Placeholder

Next, create a calculated field for X and Y coordinates in Tableau, using the dimensions of your body chart image. This placeholder will help position your data points correctly.

bodychart calculated field

Step 3: Add Background Image

In Tableau, navigate to Map > Background Images, select your data source, and click 'Add Image'. For this example, we’re using an image that is 1280x1280 pixels.

Step 4: Find X and Y Coordinates for Each Body Part

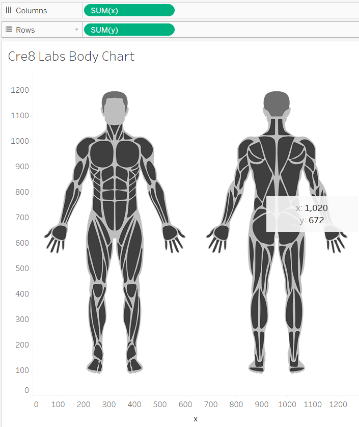

Place the X field in columns and the Y field in rows. Hover over each body part, right-click, select annotate > point, and note the coordinates.

find x and y coordinates

Step 5: Update the X and Y Calculated Field

Use the coordinates you noted to update the X and Y calculated fields. Make sure your body part names match what’s in your data source.

bodychart calculated field

Step 6: Fix the X and Y Axis

Fix both axes at the maximum values of your image—in this example, 1280 pixels. Convert the X and Y measures to dimensions.

Step 7: Clean Up Your Body Chart

Finally, hide the axis, format your marks, and add relevant labels to your chart. This makes your visualisation clean and easy to interpret.

full body chart

The Impact of Visual Injury Mapping

Using a player injuries map to visualise injuries has many benefits. Firstly, it enhances communication among team members and medical professionals by providing an good understanding of an athlete's injury status. This visual tool helps in explaining injury patterns and potential risks to athletes, making them more engaged in their own recovery and prevention efforts.

In conclusion, the integration of body chart images into sports injury management through Tableau is a game changer. It not only provides a clear and detailed view of athlete health but also supports the development of effective strategies to keep athletes in peak condition. Embrace this innovative approach to take your team's injury prevention and recovery efforts to the next level!
